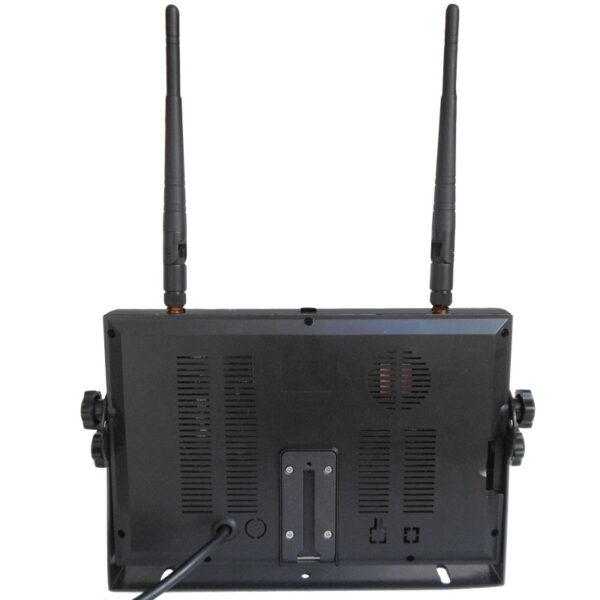

9″ WIRELESS AND DVR LCD QUAD SCREEN MONITOR

Monitor Features:

Dual screen/Quad view screen
10V-32V wide operation voltage
Range:120m(barrier-free)
Built-inrecorder: 128GB SD card storage
Multi-languages of display available: English,Chinese
Auto pairing
Auto scanning
Picture image adjustable for Horizontal/Vertical/Mirror/Normal viewing,Support trigger display
Distance label
On-board speaker

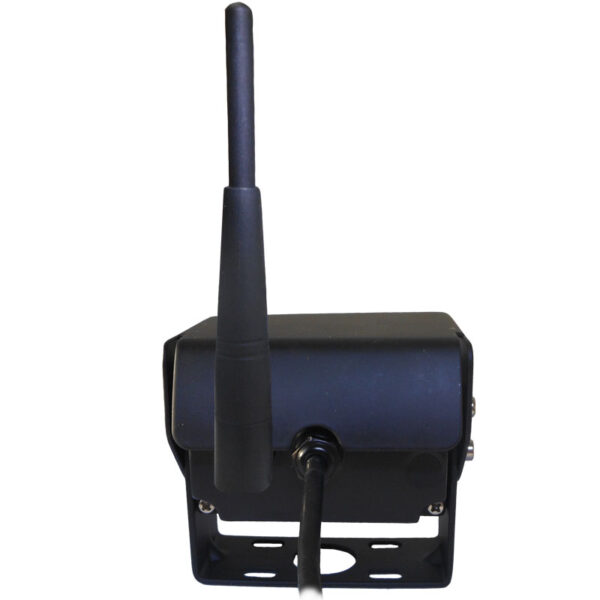

Camera Features:

Digital Wireless System

LCD size	9″	Image Device	Sharp 1/3″ CCD
Resolution	800 x 3 (RGB) x 480	TV System	PAL / NTSC
Contrast	500:1	Sensing Area	4.6228 mm (H) ×3.6112 mm (V)
Brightness	400 cd/m²	Scan Mode	Progressive
Viewing angle	U: 50 / D: 70, R/L: 70	Sync. System	Internal
Aspect ratio	4: 3 / 16:9	Resolution	600 TV Lines
Operating temperature	-20~ 60ºC, RH 90%	Minimum Illumination	0.1 Lux (day), 0 Lux (with IR)
Storage temperature	-30~ 80℃, RH 90%	Microphone	Yes
Operating frequency	2400 – 2483.5 MHz	Electronic Exposure	Up to 510:1
Transmitting distance	120 M	AGC	Auto
Recieving sensitivity	-78 dBm	S/N Ratio	Better than 48 dB
Decompression form	MPEG4	White Balance	Auto
Emitting frequency	18 dBm	BLC	Auto
Transmitting speed	12 Mbps	Current Consumption	Max. 220 mA/12V
Spread spectrum	Frequency hopping	Power Supply	DC 12-32 V
Hopping frequency	1200 Hops/S	Operating frequency	2400 -2483.5 MHz
Delaying time	250ms	Transmitting distance	120M
System format	PAL / NTSC	Transmitting speed	12Mbps
Energy consumption	Max. 8W	Decompression form	MPEG4
Video inputs	1, peak value:1Vp-p, impedance:75Ohm	Transmit output power	17 dBm
Audio inputs	1, peak value:1Vp-p, impedance:4.7kOhm	Lens	f = 2.8mm
Storage	128GB SD card	Lens Angle	120°
Loudspeaker	1W/8Ω	Operating Temperature	-20°C~60°C, RH 90% MAX.
		Storage Temperature	-30°C~80°C, RH 90% MAX.
